Air Plugs & Air Rings
Cyclo Instruments manufactures Air Plugs And Air Rings compatible to various air gauging systems used in the country. Air Plugs in the range of 6 to 200mm diameter and Air Rings in the range of 10 to 100mm diameter; are designed to inspect internal and external diameters respectively; where the work tolerances are of the order of +/- 0.030 mm or closer.
Made of tool steel; their very fast response time; sensing accuracy and accessibility have made them favorite inspection tools in mass production; covering industries such as Automobiles; Refrigeration; Textile; Bearing and Electric motor. Very useful inspection tools to determine form variations; they provide first-hand information of the machine error & the error introduced in the tool setting. Non contact gauging makes them very long-lasting and thereby compensating for the initial costs.
Salient Features
- Made from High Alloy Steel 60+/-2 HRC
- Tooling could be made to suit different measuring systems.
- Multijet Air plugs for simultaneous Measurements.
- Mfg Range – For Air Plug:- 6 mm to 200 mm
For Air Rings:- 8mm to 150mm
Application of Product
- For Non Contact gauging in mass production
- To check dimensions accurately where standard instruments fail to give results such as shallow depths, narrow lands etc.
Our Strengths
- Tooling could be made to suit different measuring systems available in the country today.
- Shallow depths & lands where nozzles are required to be very close to the face can be manufactured.
- Reasonable price & Delivery in 4 to 5 Weeks

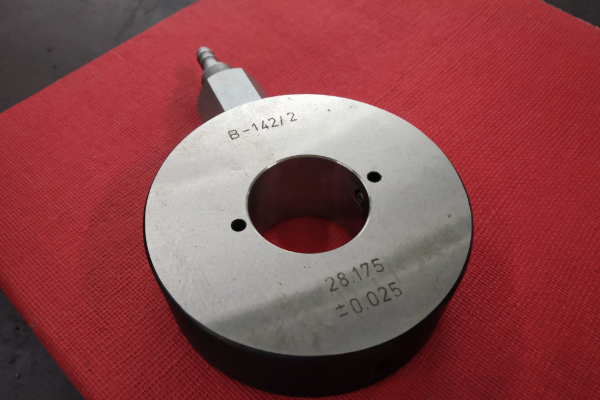

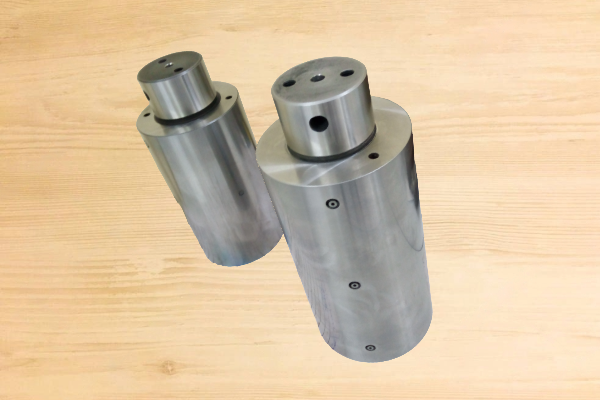

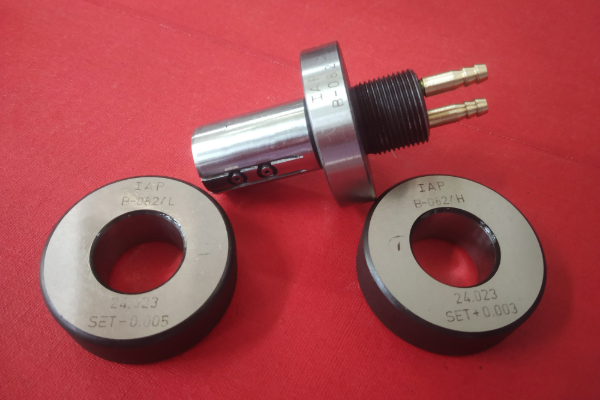

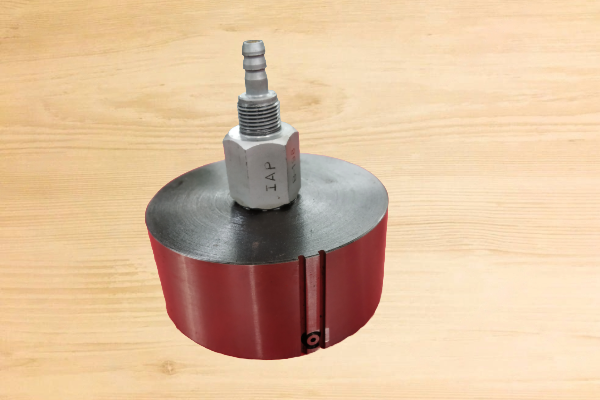

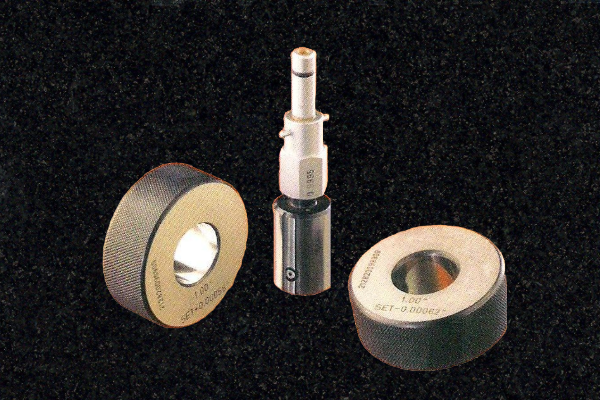

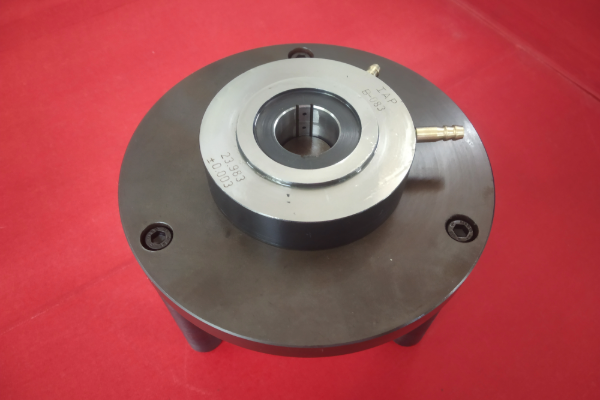

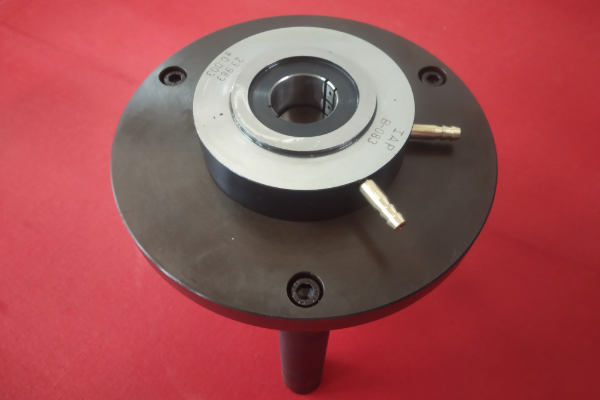

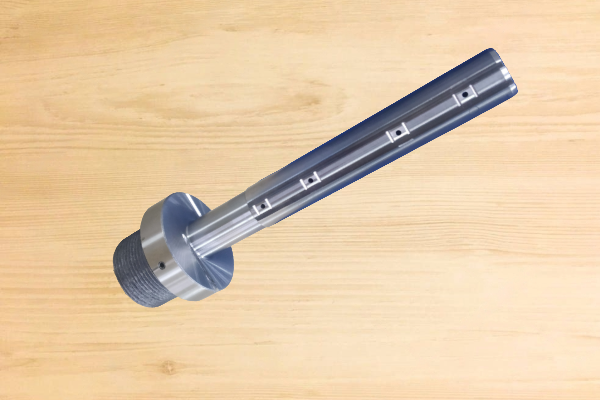

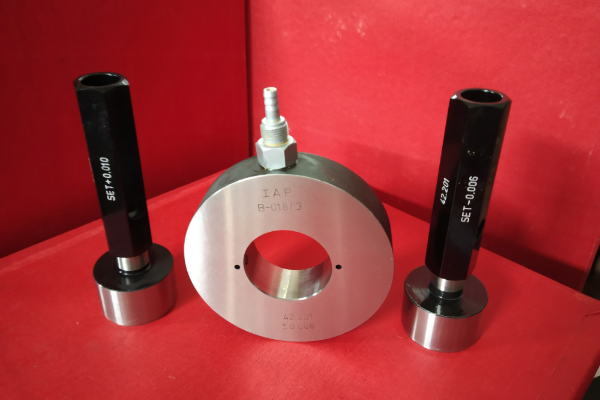

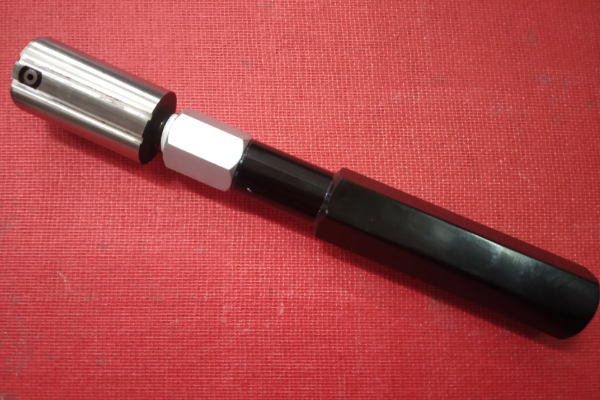

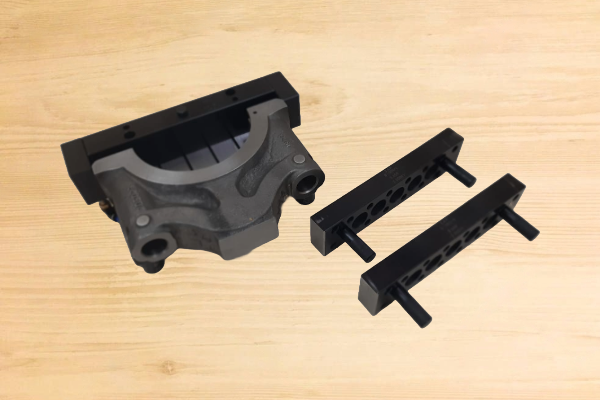

Product Gallery
