Master Setting Ring Gauges & Plain Go/No Go Ring Gauges
Cyclo Instruments manufactures Master Setting Rings in the range of 6 to 500 mm & Plain GO/NOGO Ring Gauges in the range of 6 to 250 mm. Blank design for both types is as per I.S.3485-1983. The manufacturing tolerance for Master Setting Rings is as per I.S.3485-1983 & that for Plain GO/NOGO Rings is as per I.S.3455-1971. Master Setting Rings are used to set internal diameter setting instruments such as Dial bore gauges; 3 point Internal micrometers and Dia-test plugs. Plain GO/NOGO Rings are Plain Limit Gauges for checking shafts.
Made from PRIME QUALITY Alloy steel; these rings are STABILISED by SUBZERO PROCESS @ -80ºC; in a specially designed low-temperature test chamber to arrest the dimensional growth. Calibration of these rings is done on Carl Ziess Make Horizontal Metroscope; the accuracy of which is TRACEABLE to National Standards of length through NPL. Individual gauge is supplied with a calibration report.
Our Specialty is the achievement of Superior unmatched Surface finish & Dimension Control of Internal Dia of Master Setting Rings compared with any manufacturer in India.
Salient Features
- For Setting Internal diameter measuring instruments and for use as GO/NOGO Ring Gauges.
- Made from Alloy Steel and hardened to 60 HRC
- Subzero treated for dimensional stability @ -80°C, in numerically controlled Test Chamber.
- Calibrated at +20°C on Horizontal Metroscope under standard Rooms Conditions.
- Dimensions traceable to NPL, New Delhi.
- Blank Design as per I.S. 3485-1983
- Gauging Practice as per I.S. 3455-1971
- Manufacturing Range- 5 to 360mm.
Our Strengths
- Best Quality Raw Material e.g. MAHINDRA UGINE.
- Subzero Treated @ -80°C instead of required MF temperature of -73°C guarantees the Dimensional Stability of our Ring Gauges compared with competitors doing Subzero at -75° C
- Best in class Roundness/Taper achieved i.e. less than 1 Microns
- Best in class Surface finish to the tune of 0.12 Microns Ra value.
- Best Size & Form Accuracy gives peace of mind that the checked components with our Ring Gauges will definitely fit with mating components at Customer end
- Subzero Stable Blank retains the dimensions over a long period of time results in longer life.
- Reasonable price & delivery
Product Applications
- For Setting Internal Dia Measuring Instruments such as Bore gauge Beam Gauge, UDOC apparatus etc.
- GO/NOGO Ring Gauges for checking Shaft OD, Capsule OD etc.
- Used as Higher & Lower Masters for Air Plugs.
- Used as Masters in MULTIGAUGING Fixtures.

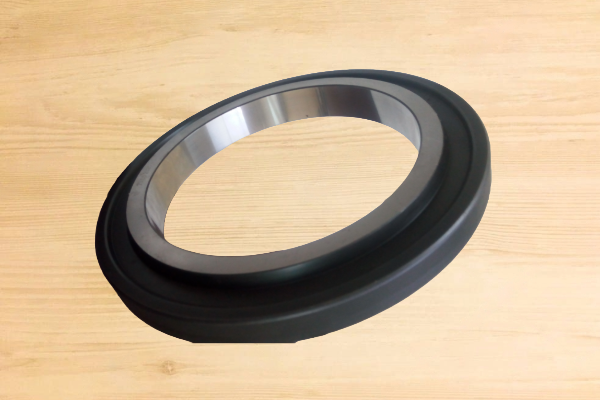

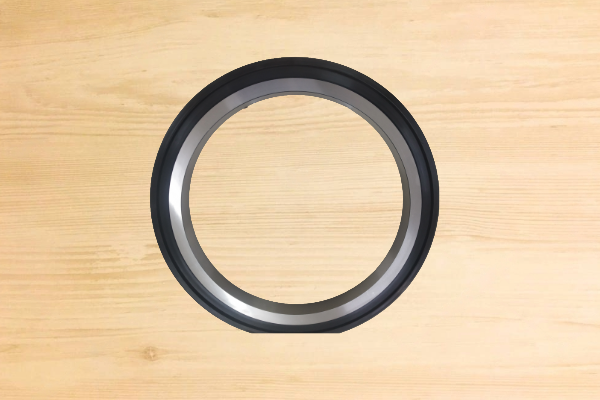

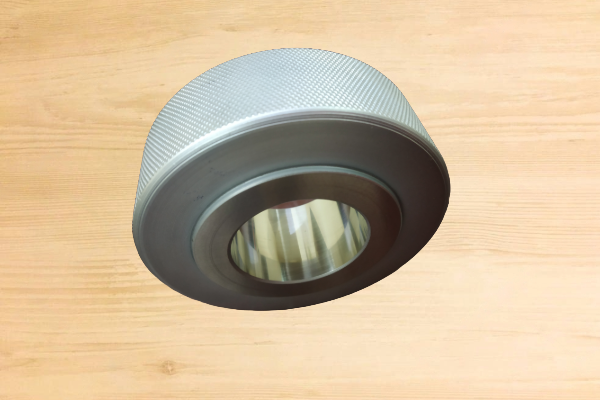

Product Gallery
