Thread Measuring Wires
Salient Features
- Design as per IS 6311-1978
- Comes in 2 Wire Set or 3 Wire Sets
- Complete Set of 2 Wires or Three Wire Sets, covering different metric pitches from 0.25mm to 6mm, & inch varieties from 80TPI to 4TPI
- Instrument Grade wooden Box will be provided for Total Set of 21 Sizes.
Application of Product
- For checking Pitch Diameter of ISO Metric, Unified, Whit worth and B.A. external threads
- To check the Pitch diameters of Gears.
Our Strengths
- Wires below 1.5mm come in H.S.S Steel for good Hardness & longer life.
- Roundness/Taper & size achieved for all wires within 0.5 Microns.
- Reasonable price & delivery.

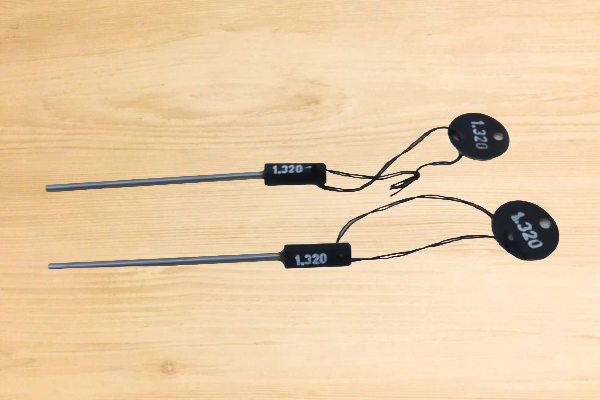

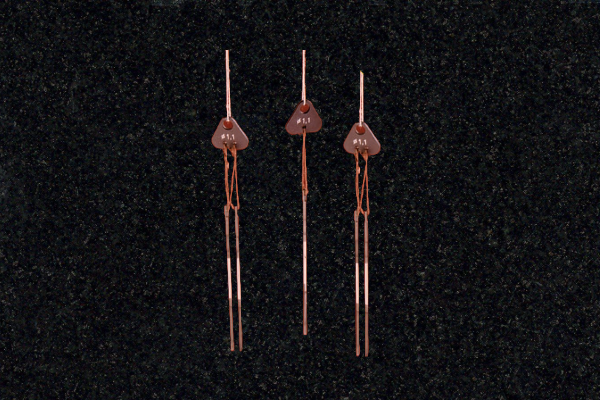

Product Gallery
